Requirements
• Support a 5-gallon water jug at the upper level (41.7 lbs)
• Support a 3-gallon water jug at the lower level (25 lbs)
• Must include slide storage at the bottom for a weight scale
• Covers for upper and lower level
• Must make use of a box joint
• Must have a minimum inner width of 13 inches
• Spigot of water jug must remain 33 inches above ground
• Support a 3-gallon water jug at the lower level (25 lbs)
• Must include slide storage at the bottom for a weight scale
• Covers for upper and lower level
• Must make use of a box joint
• Must have a minimum inner width of 13 inches
• Spigot of water jug must remain 33 inches above ground

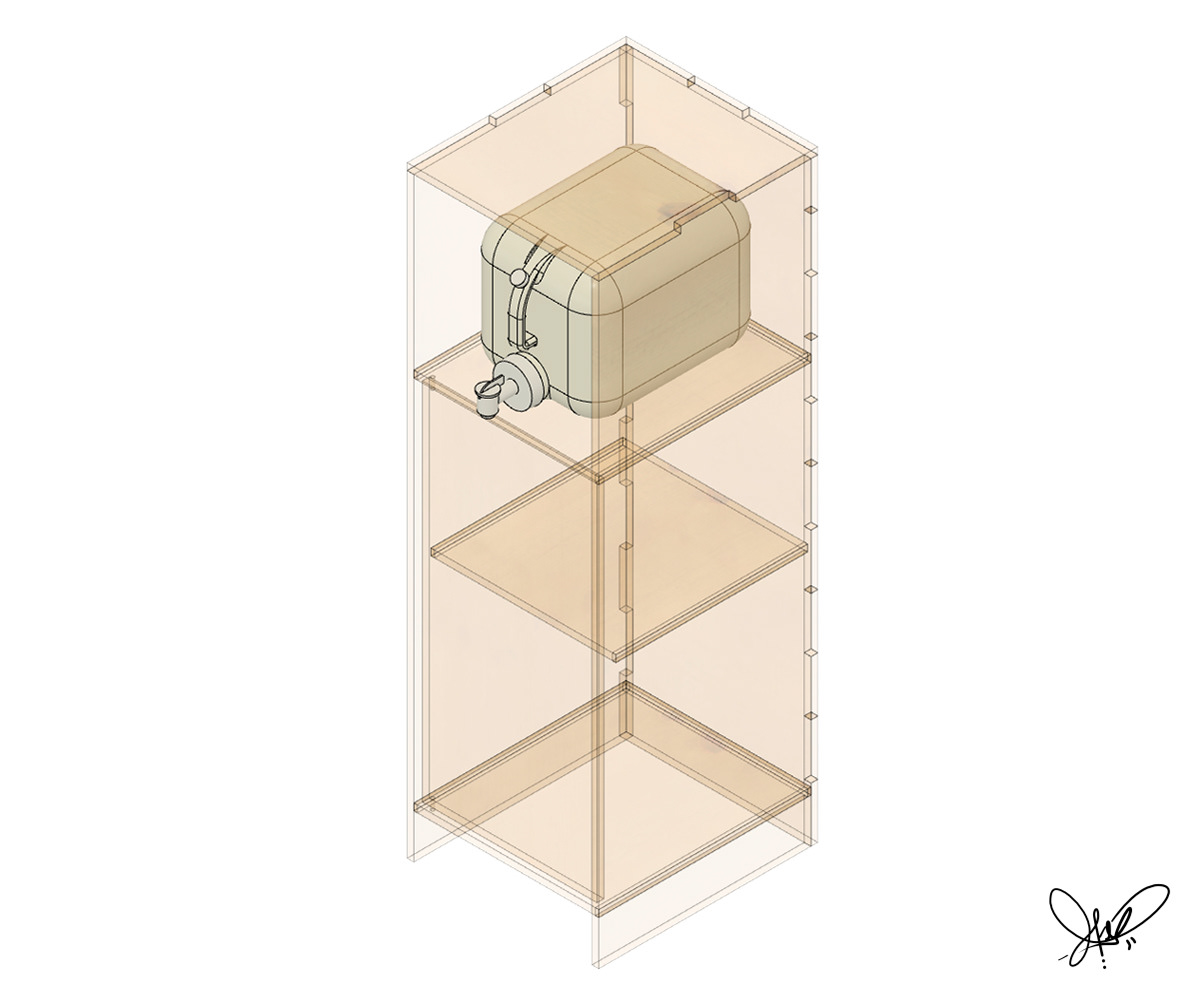

x-ray

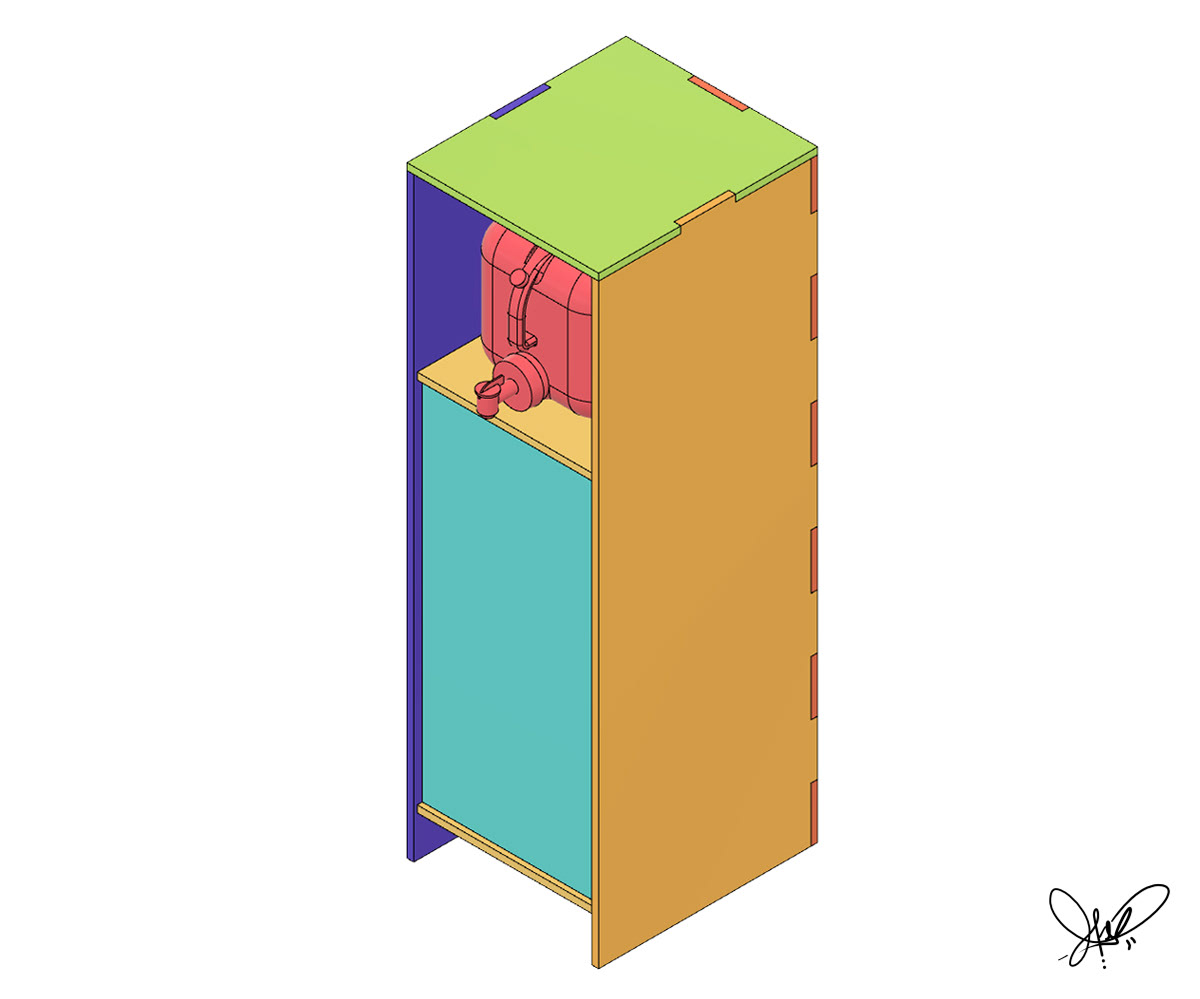

Assembly

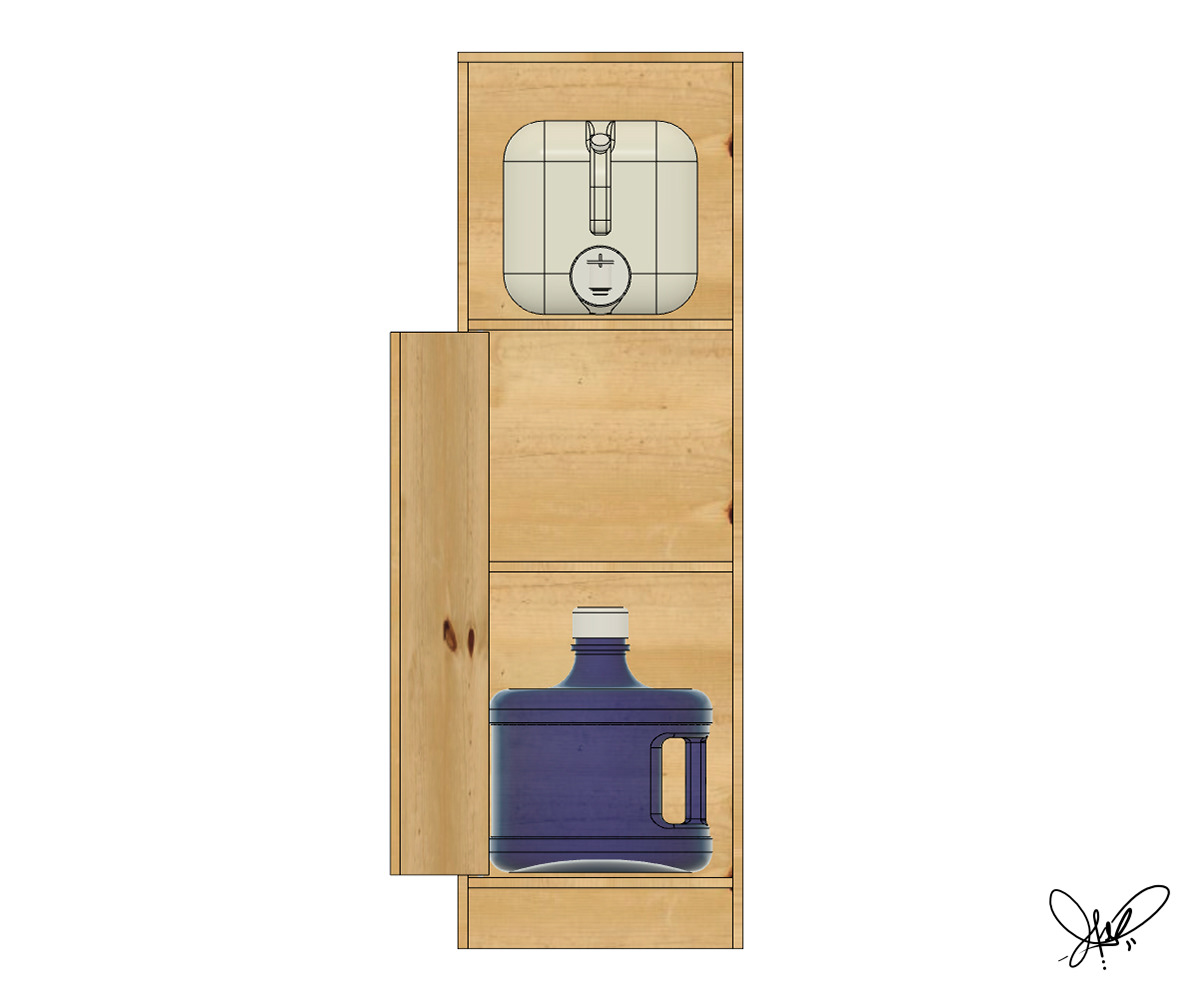

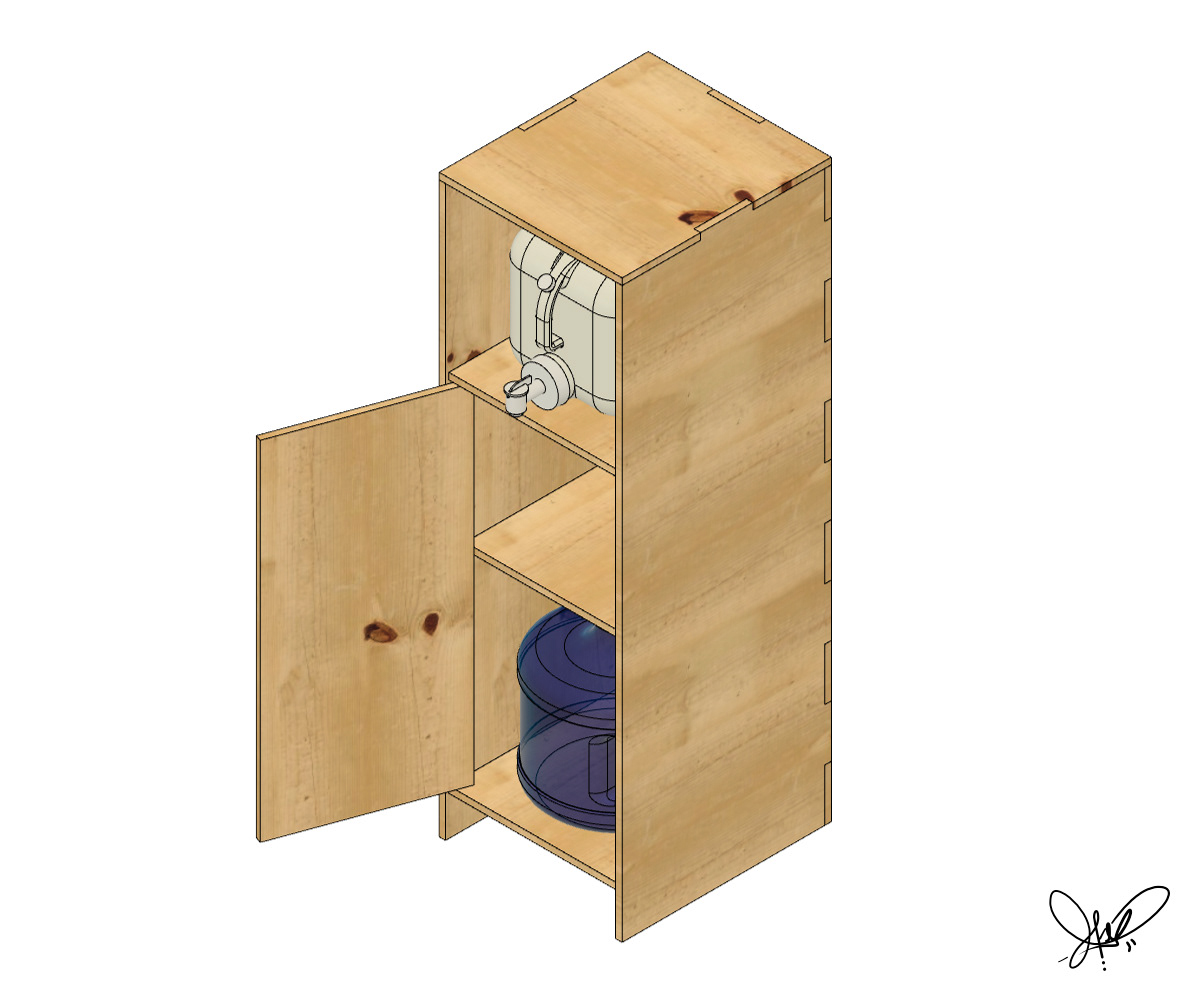

Motion 1
Motion 1b

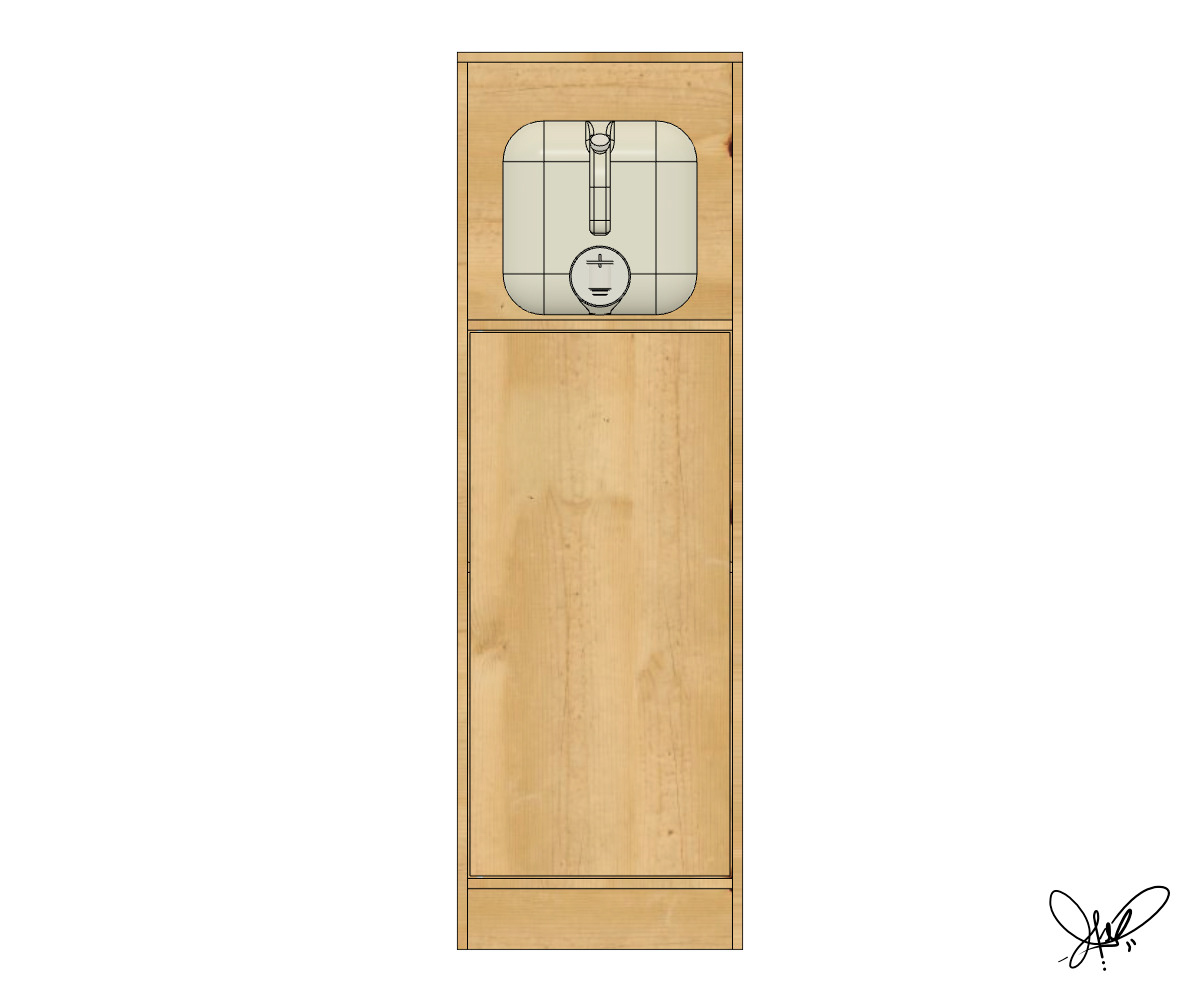

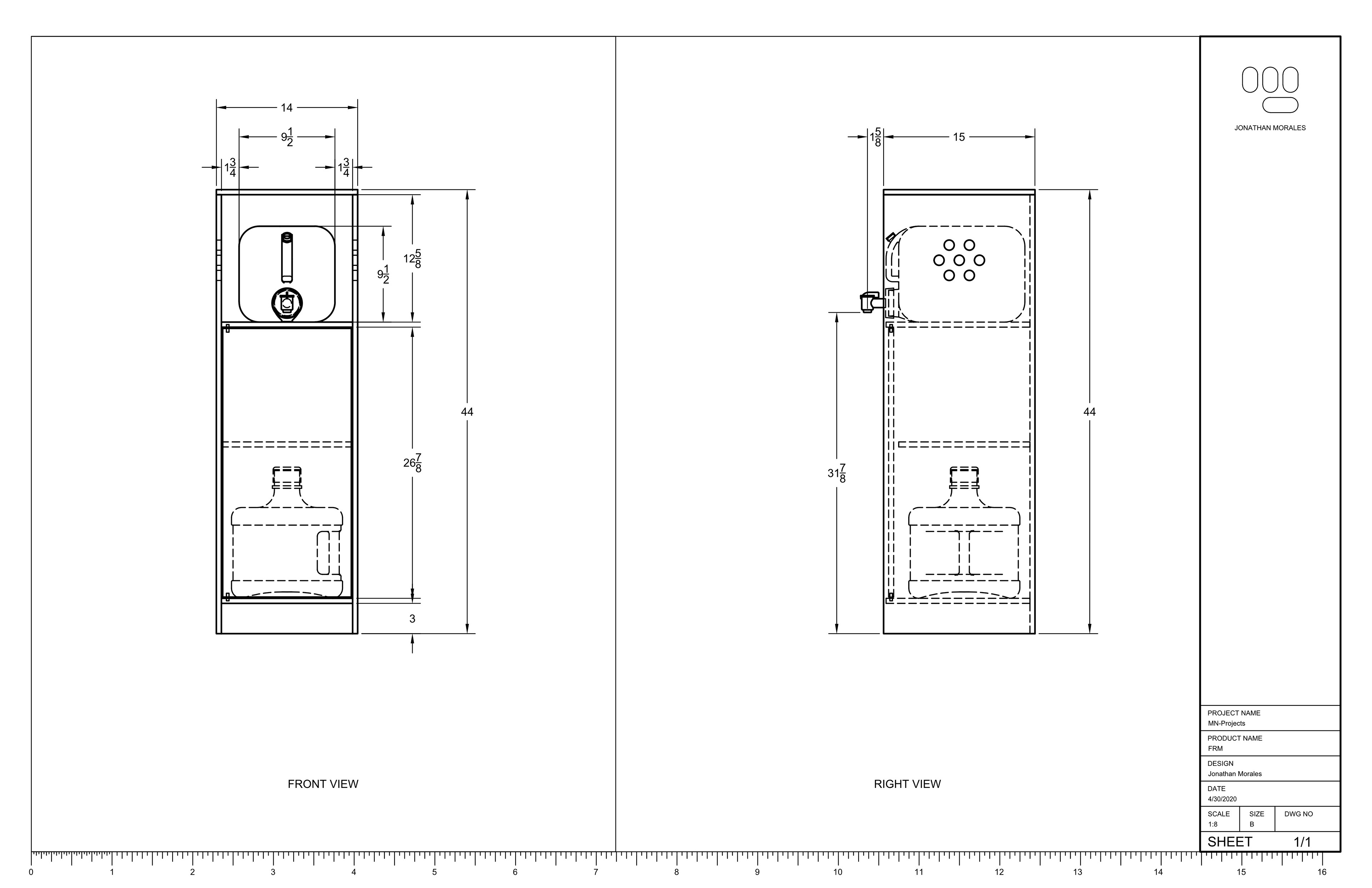

Front

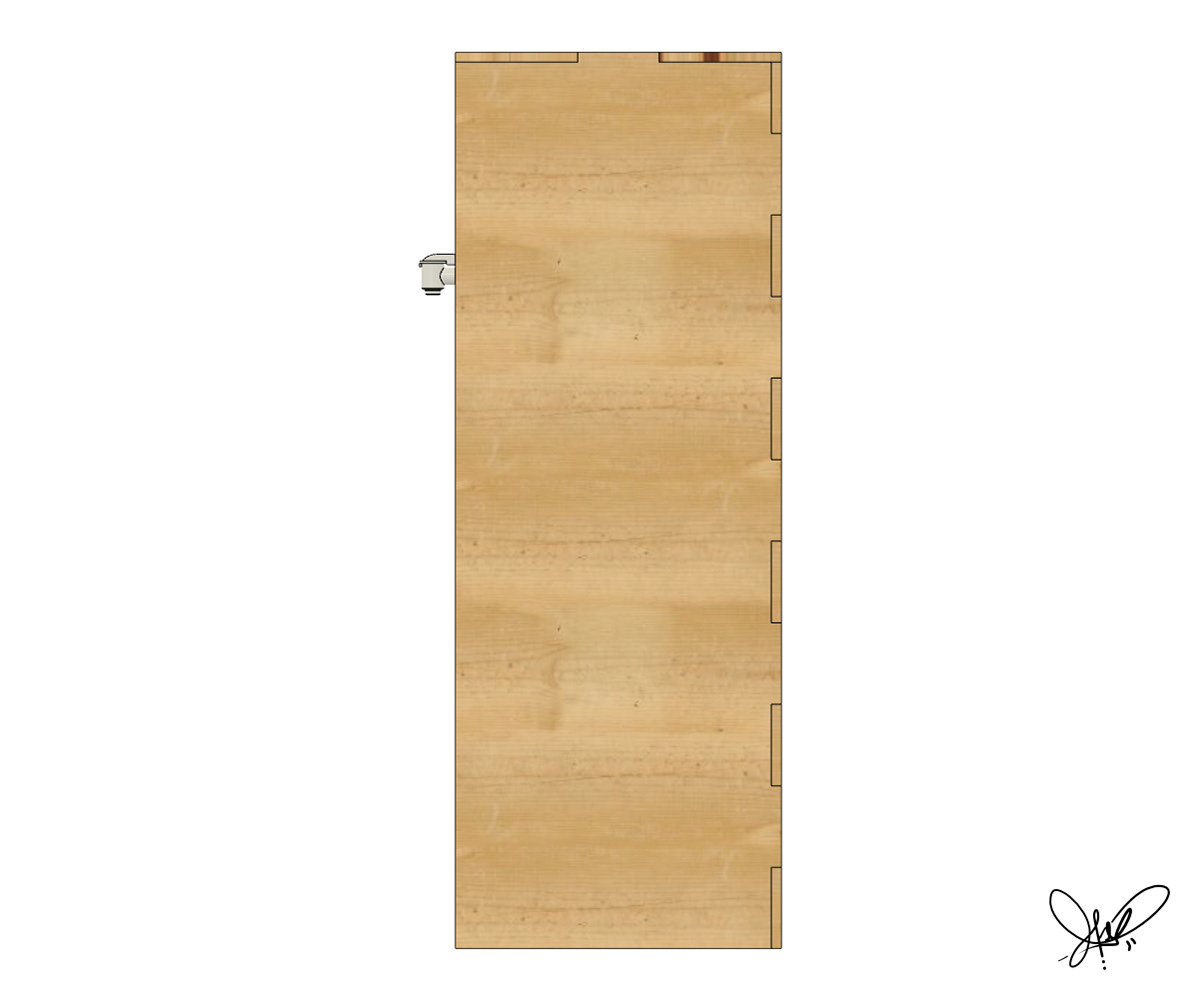

Side

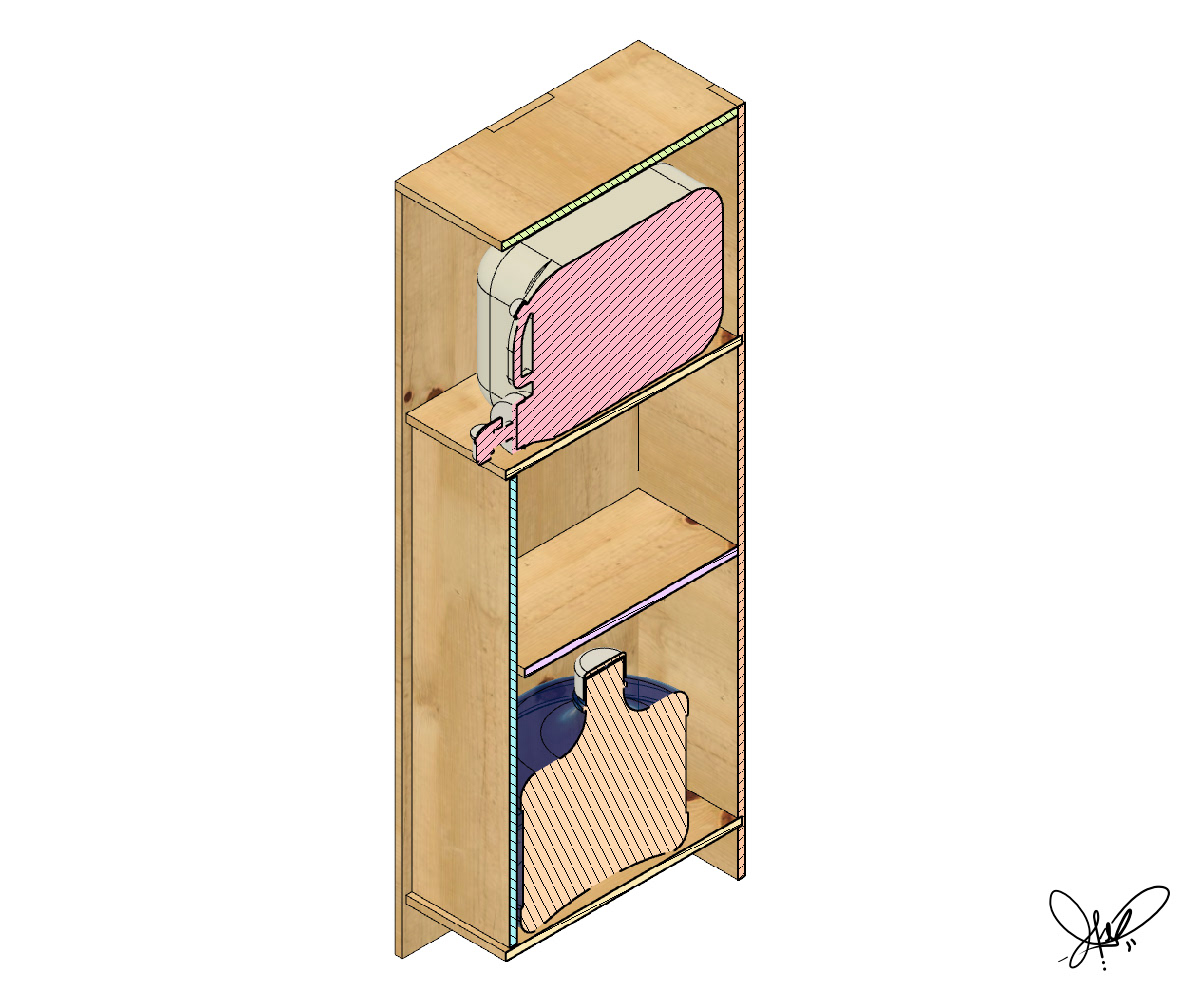

Section
Specifications
• 14"W x 16"D x 48"H
• Approximately 55 lbs
• Number of shelves: 2
• Removable fence for an easy to clean top surface
• Approximately 55 lbs
• Number of shelves: 2
• Removable fence for an easy to clean top surface
Production
• 1 Sheet of plywood
• 1 Magnetic Latch
• 3/8" dowel (Replacement: Pivot Hinge)
• 1 Magnetic Latch
• 3/8" dowel (Replacement: Pivot Hinge)
